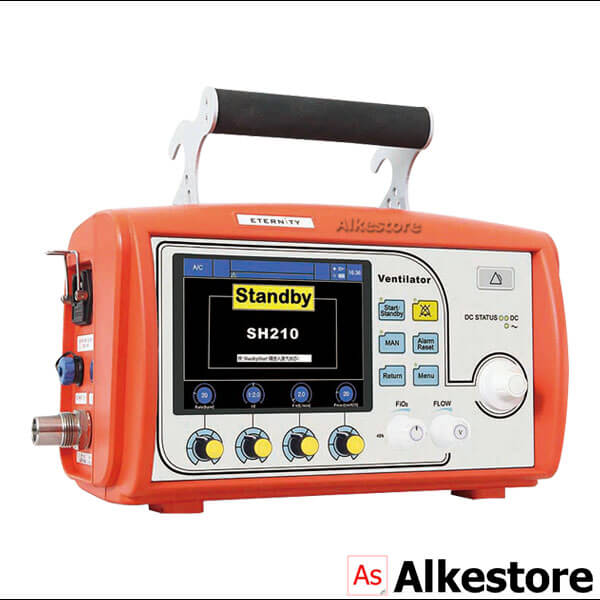

Portable Emergency Ventilator

Diskripsi Produk
Hostech Portable Emergency Ventilator tipe SH210 adalah alat bantu pernafasan mekanik yang berfungsi untuk menggantikan atau menunjang fungsi pernafasan. Ventilator ini sangat cocok untuk perlengkapan di ambulance karena bentuk atau desainnya yang simple dan ukurannya yang tidak terlalu besar.
Features

1. 5.6″ TFT color screen
2. Microprocessor controlled system
3. Suitable for adult & pediatric
4. Convenient using
5. Use knob setting
6. PEEP, P-V loop, V-F loop
7. Three-level visual and audible alarm, with concise words describing problems
8. Can be used for emergency and emergency transport and ICU treatment
9. Durable and accurate built-in flow sensor
10. Integrated expiration valve, easy to be sterilized
11. Backup apnea ventilation
12. Auto nebulizer
13. Backup chargeable battery
14. Improve the breathing pattern
15. CE certified

Portable Emergency Ventilator Specifications

Ventilator setting

1. Patient type: Adult & Pediatric
2. Driven mode: Gas driven electronically controlled
3. Working mode: pressure limited, time cycled, volume controlled
4. Setting: Electronic Knob
5. Ventilation mode: VCV, SIGH, SIMV+VCV, CPAP, SPONT
6. Waveform: P-T, F-T, V-T, P-V Loop, V-F Loop
7. Tidal volume: 0~1500ml
8. Breathing rate: 4~100bpm
9. I:E: 3:1~1:5
10. Trigger sensitivity: -2KPa~PEEP
11. PEEP: 0~2KPa
12. Oxygen: 50~100%

Alarms

1. Tidal volume, Airway pressure, Respiratory rate, Apnea, Power supply failure, Lack of oxygen pressure, Battery low
2. MV: Higher limit and lower limit
3. Pressure: Higher limit and lower limit
4. V: Higher limit, lower limit
5. Rate: Higher limit, lower limit
6. Apnea: Higher limit
7. FiO: Upper limit, lower limit
8. Loudness: 5 rating: 1,2,3,4,5

Environment requirement

1. Power: AC110~240V, 50~60Hz
2. Gas supply: Air & Oxygen pressure: 0.28~0.6MPa, <100L/min
3. Temperature: Operation -18~50°c; Storage -20~55°c
4. Relative humidity: Operation ≤80%, non-condensing; Storage ≤93%, non-condensing
5. Atmospheric pressure: Operation 50~106KPa

Accessories

Expiratory valve
Sampling tube
Flow sensor
Control of tracheal
O pipeline
Air pipeline
Silicone tube
Test lung
Weight and dimension
NW: 6.6kg
GW: 7kg
Dimension: H480xW260xD420mm
